EMERGENCY LIGHTING

Surge protected lighting back up with RCBO to protect life and to protect overload on a circuit. These devices are easy to install in existing or new lifts with different mounting positions.

emPOWER

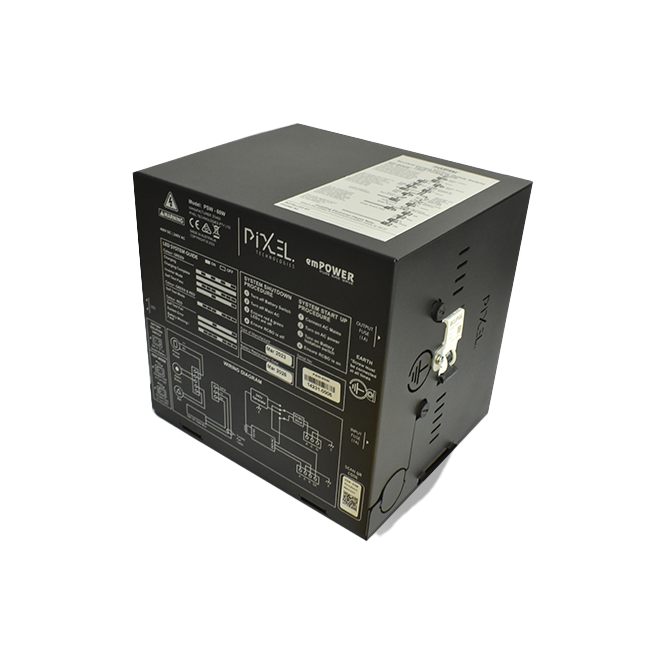

The PSW-60W pure sine wave emergency power supply with an RCBO-protected output is the perfect solution for powering your lift emergency lighting and fans providing up to 2 hours of battery-backed power at 60w. A test mode can be enabled to simulate a power failure and operate connected loads for battery backup with visible status LEDs providing an indication of where the batter may require attention or replacement. An emFONE and alarm bell interface provides additional battery backup to your lift phone whilst the StationBus interface provides connectivity to our emFONE 181 system allowing for status reports to Pixel’s eLiioT cloud monitoring platform.

Features:

  • 220V AC 50Hz Pure Sine Wave

  • 100W Maximum Output Power, 2 Hours with a 60W Load

  • RCBO Protected Output, with 30mA Earth Leakage Trip Sense

  • Intelligent Battery charging, Monitoring and Test functionality

  • Built-in Replaceable 12V/18Ah SLA Battery

  • emFONE and Alarm Bell Outputs

  • Status LEDs

  • eLiioT Cloud Integration via the emFONE 181 System StationBus
